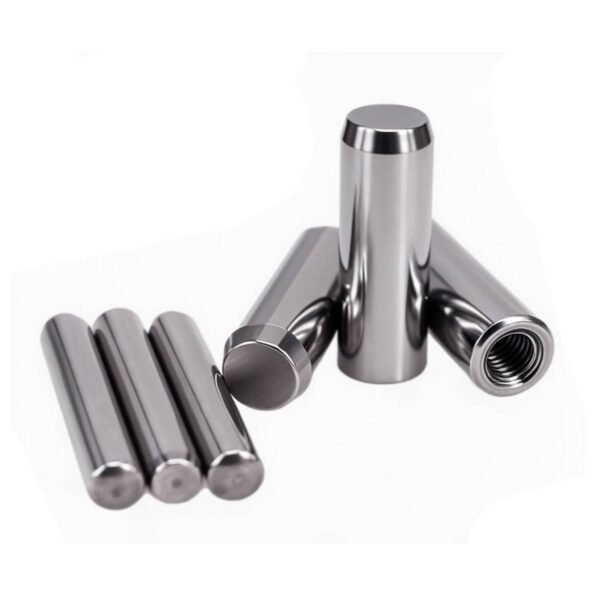

Tapped Dowel Pins – MSTM / MSTP / MSTH / MS
Our tapped dowel pin series (MSTM, MSTP, MSTH, MS) is widely used in die and mold bases, automation equipment, and jigs. These pins include center-tapped ends to allow for easy extraction or precise bolt locking.
Gunri - Professional a automation parts manufacturer
- ISO9001:2008
- JIS,AISI,DIN
- OEM Factory
Description
Technical Specifications
| Series Code | Description | Thread Type | Material Options |
|---|---|---|---|
| MSTM | Tapped both ends | Metric | SKD11, SUJ2, SUS |
| MSTP | Tapped one end only | Metric | Hardened Steel / SS |
| MSTH | With head (flanged dowel pin) | Metric | Hardened Tool Steel |
| MS | Slotted type for expansion fitting | — | Spring Steel |
Features
-
Center-tapped for extraction and alignment
-
Various head or slotted designs to suit mold base or automation usage
-
High precision grinding, tolerance ≤ 0.005mm
-
Custom threads (UNC/UNF/Metric) and finishes supported
Compatible With
MISUMI, FUTABA, PUNCH, DME standard mold bases.
Downloadable Documents
Get a Fast Quote
OEM sizes, threading, materials and coatings available.
