Side-connected pogo Pin

Side-connected pogo pin

  • Precise alignment for SMT/DIP soldering

  • Supports single-pin placement

  • Suitable for board-to-board connection

  • Strong soldering strength

  • Saves PCB space and reduces board height

Gunri - Professional a automation parts manufacturer

  • Check Mark ISO9001:2008
  • Check Mark JIS,AISI,DIN
  • Check Mark OEM Factory
Category: Brand:

Description

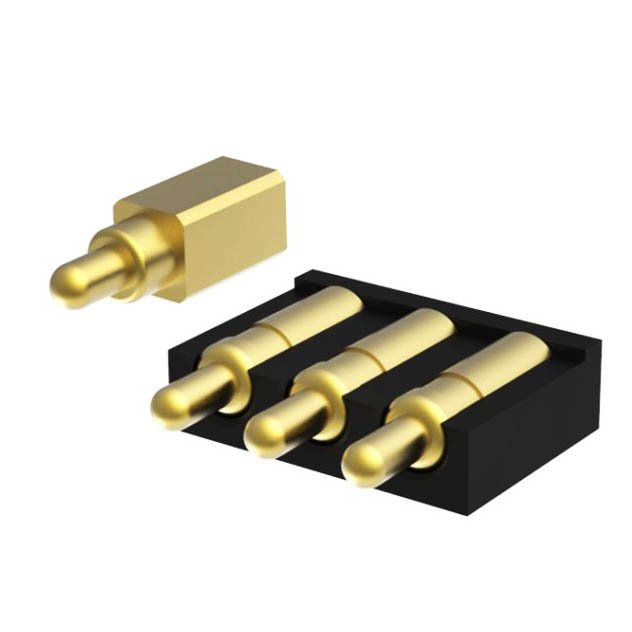

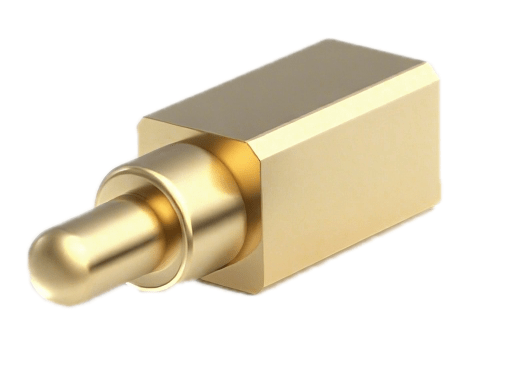

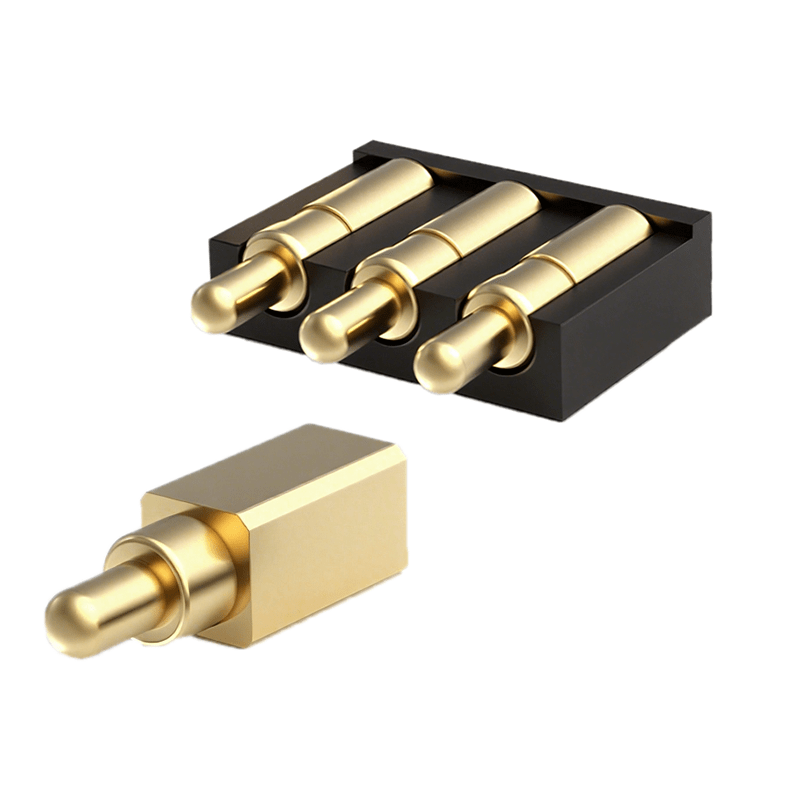

Side-connected Pogo Pin – Lateral Spring Pin for Edge and Side Contacts

Our Side-connected Pogo Pins feature a lateral contact structure, making them ideal for edge-mounted or side-facing PCB connections.
The unique design allows flexible integration into compact assemblies while ensuring stable electrical performance and mechanical reliability.

Key Features:

  • Side Contact Structure: Designed for horizontal or lateral connections

  • Flexible Mounting: Compatible with SMT and DIP processes

  • Space-Saving Layout: Ideal for compact PCBs and edge modules

  • Single-Pin Ready: Supports modular, low-profile applications

  • Strong Soldering Strength: Reliable contact even under vibration

  • High Durability: Rated for over 10,000 compression cycles

  • RoHS & HF Compliant: Safe, environmentally friendly materials

  • Customizable: Available in various barrel lengths and spring forces

Technical Specifications:

Specification Detail #1 Detail #2 Detail #3
Materials Barrel/Plunger: Brass Spring: Stainless Steel
Plating Barrel: 0.1μm Gold + 1.4μm Nickel Plunger: 0.4μm Gold + 1.4μm Nickel
Electrical Contact Resistance: ≤ 30mΩ Rated Voltage: Max 36V DC Current: Max 2.0A
Mechanical Durability: ≥ 10,000 cycles

Recommended Applications:

  • Edge connectors

  • Side-mounted PCBs

  • Slim or foldable devices

  • Wearables and mobile modules
