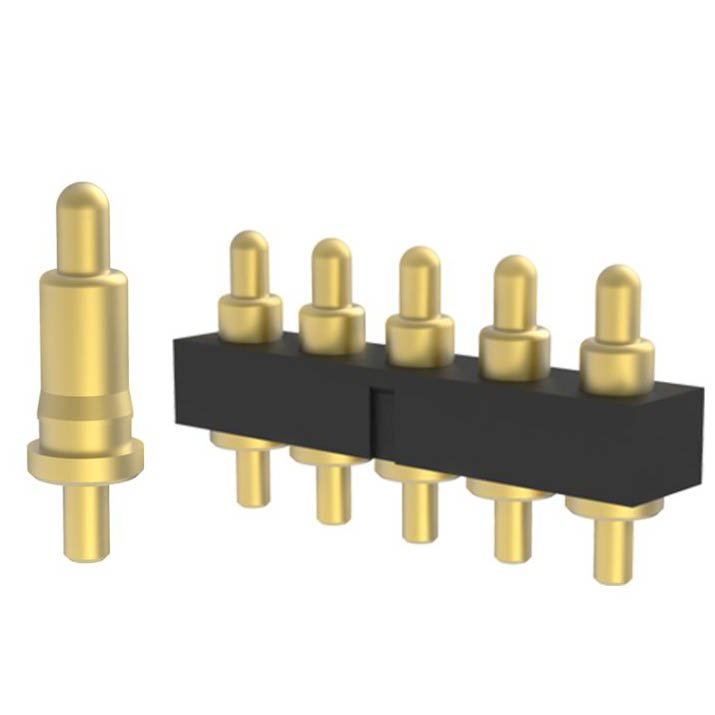

DIP Pogo Pin

  • Excellent alignment; supports single-pin SMT/DIP soldering

  • Ideal for board-to-board connection

  • Strong soldering strength for stable contact

  • Saves PCB space; reduces overall board height

  • Long lifespan: 10,000+ cycles

  • Customizable without mold cost

  • Adjustable spring force

  • Low inductance for high-frequency signals

  • Complies with RoHS & HF standards

Gunri - Professional a automation parts manufacturer

  • Check Mark ISO9001:2008
  • Check Mark JIS,AISI,DIN
  • Check Mark OEM Factory
Categories: , Brand:

Description

DIP Pogo Pin – High-Performance Spring-Loaded Connector for Versatile Applications

Our DIP Pogo Pins are engineered for high reliability and design flexibility, making them ideal for modern electronic assemblies such as SMT, plug-in, and modular boards. With a durability of over 10,000 mating cycles, these spring-loaded connectors are perfect for long-term use in demanding environments.

Key advantages of our DIP Pogo Pin connectors:

  • Long Service Life: Designed for over 100,000 insertions, ensuring stable electrical performance and lower maintenance costs.

  • No Mold Needed: Fast and cost-efficient customization for different designs – no tooling fees required.

  • Precise Spring Force: Adjustable spring force ensures accurate contact pressure for your specific application.

  • Space-Saving Design: Ultra-compact pin pitch allows for flexible board layout and high-density integration.

  • High-Frequency Ready: Low inductance design improves performance in high-frequency and sensitive signal environments.

  • Production Flexibility: Fully compatible with both SMT and DIP production processes.

  • RoHS & HF Compliant: Fully compliant with global environmental and safety regulations.

Technical Specifications:

Specification Detail #1 Detail #2 Detail #3
Materials Barrel/Plunger: Brass Spring: Stainless Steel
Plating Barrel: 0.1μm Gold + 1.4μm Nickel Plunger: 0.4μm Gold + 1.4μm Nickel
Electrical Contact Resistance: ≤ 30mΩ Rated Voltage: Max 36V DC Current: Max 2.0A
Mechanical Durability: ≥ 10,000 cycles

Available Sizes:

  • 1.03mm Barrel

  • 1.25mm Barrel

  • 1.50mm Barrel

  • 6.60mm Barrel

Choose our DIP-type Pogo Pins for compact, high-frequency, and customizable interconnect solutions. Whether you’re designing a testing jig, a communication module, or a consumer device, these pins provide the precision and endurance you need.
