DIN 7979 dowel pins

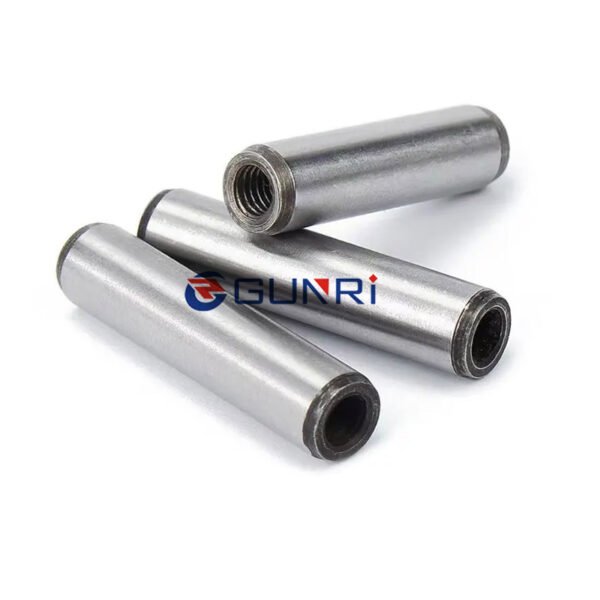

DIN 7979 dowel pins with internal thread are designed for easy installation and removal in precision alignment applications. Available in steel and stainless steel, these tapped pins follow exact DIN 7979 specifications and are ideal for tooling, jigs, dies, and machinery.
Gunri - Professional a automation parts manufacturer
- ISO9001:2008
- JIS,AISI,DIN
- OEM Factory
Description

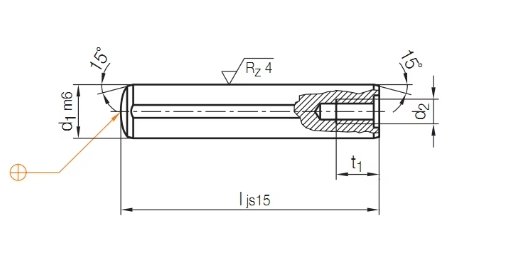

Technical Specifications
| Standard | DIN 7979 |
|---|---|
| Material | Hardened Steel (HRC 58–62) / SS304 / SS316 |
| Surface Finish | Plain, Black Oxide, or Passivated |
| Thread Type | Metric internal thread |
| Tolerance Class | m6 / h6 |
| Diameter Range | Ø3 – Ø20 mm |
| Length Range | 10 – 100 mm |
| Applications | Molds, die sets, CNC machines, automation |
🧩 Features
-
Internal thread for easy pin removal with pull-out bolts
-
Hardened and ground for wear resistance
-
Available in both full-length and short-length versions
-
Custom thread size and depth available
