Circuit Board Guide Pins
High-precision guide pins engineered for seamless PCB alignment during assembly. Durable construction supports repeated use across multilayer boards. Standard models ship immediately; volume pricing offered.
Showing all 12 results
-
-

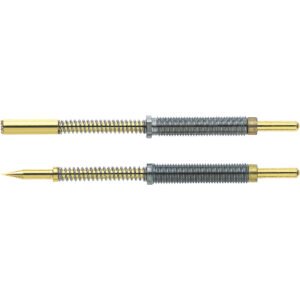

Compact Probe Assembly – FNP10 Series
Minimized contact points enhance conductivity while threaded adjustment enables micron-level height control. Low-impedance design suits space-constrained automated inspection systems. Tiered pricing for bulk orders.
-

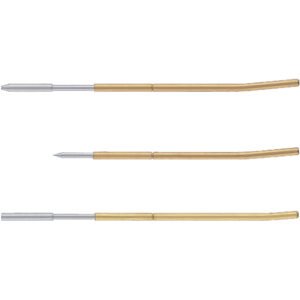

Contact Probes and Receptacles-38 Series
4mm precision stroke paired with industry-standard 2.54-3.00mm pitch for micro-connector validation. Rhodium plating guarantees >100,000-cycle durability.
-

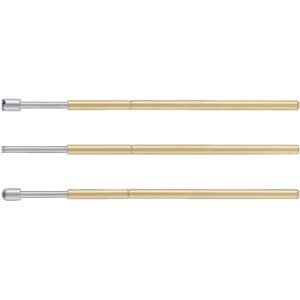

Contact Probes/Receptacles – 45 Series
Brass barrel receptacles enable 1.70-2.00mm micro-pitch installations. Adjustable plunger length (5.1–8mm) accommodates compact component testing. 5.0mm stroke balances precision and mechanical resilience.
-

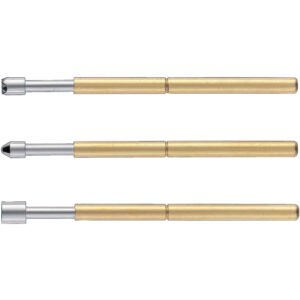

Contact Probes/Receptacles – 604 Series
4mm precision stroke paired with industry-standard 2.54-3.00mm pitch for micro-connector validation. Rhodium plating guarantees >100,000-cycle durability. Custom testing protocol synchronization available.
-

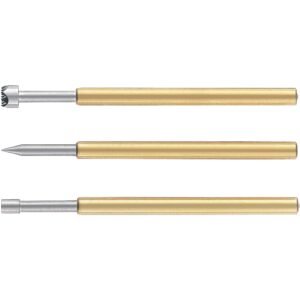

Contact Probes/Receptacles – 84 Series
Optimized for dense layouts with 6.3mm stroke and 2.54-3.00mm pitch compatibility. Rhodium-nickel plating prevents oxidation, maintaining stable 80mΩ resistance for low-current measurement accuracy.
-

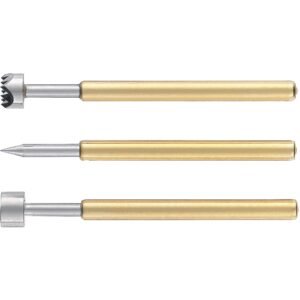

Contact Probes/Receptacles – 90 Series
Designed for 3.50-9.00mm pitch configurations, combining 6.4mm stroke flexibility with dual-layer plating for extended durability. Supports mixed-signal testing environments. Custom specifications accommodated.
-

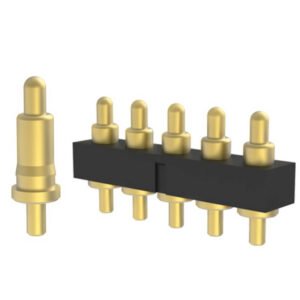

DIP Pogo Pin
-
Excellent alignment; supports single-pin SMT/DIP soldering
-
Ideal for board-to-board connection
-
Strong soldering strength for stable contact
-
Saves PCB space; reduces overall board height
-
Long lifespan: 10,000+ cycles
-
Customizable without mold cost
-
Adjustable spring force
-
Low inductance for high-frequency signals
-
Complies with RoHS & HF standards
-
-
Integrated Probe Assembly – Threaded, MNP50 Series
A solder-free design featuring round crimp terminals and lead wires secured within threaded grooves using locking nuts. Ideal for precision height adjustment in electrical testing systems
-

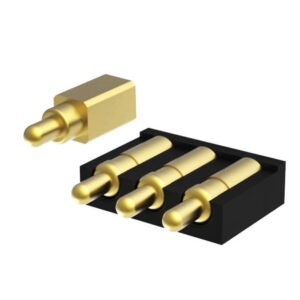

Side-connected pogo pin
-
Precise alignment for SMT/DIP soldering
-
Supports single-pin placement
-
Suitable for board-to-board connection
-
Strong soldering strength
-
Saves PCB space and reduces board height
-
-

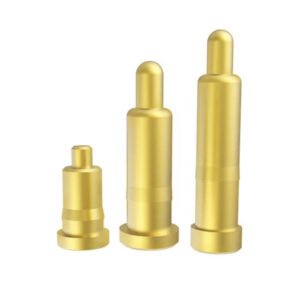

SMT Pogo Pin
- Compact and space-saving SMT Pogo Pin connector with simple structure and reliable contact.
- Supports single-pin SMT mounting and board-to-board connection.
- Bottom surface can act as contact point—enabling solder-free design.
- RoHS & HF compliant, ideal for compact PCB layouts.
-

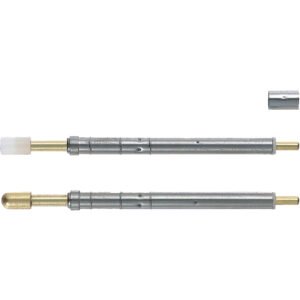

Switch Probes – SNP Series
Mechanical ON/OFF switching via axial probe movement. Modular design integrates with automated test platforms for functional validation and safety interlocking. Collaborative spec adjustments supported.
